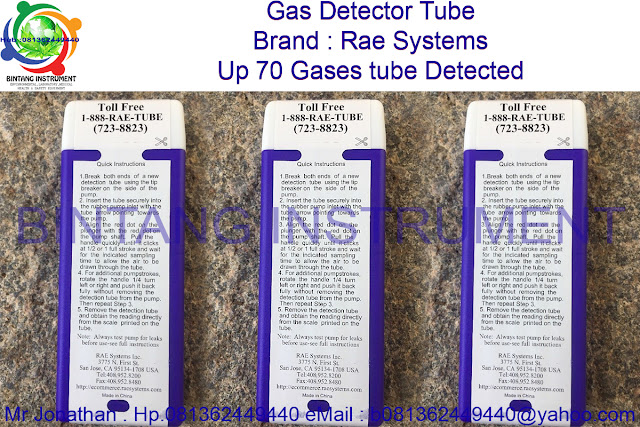

GAS DETECTOR TUBE
Brand : RAE SYSTEMS
Negara Asal : USA
Gas Detected : Up to 70 Gases
type
|
Part Number
|
standard range
|
Extended range
|
acetone
|
10-111-40
|
0.1 to 2%
|
0.05 to 4%
|
amines
|
10-132-10
|
0.5 to 10 ppmv
|
0.25 to 20 ppmv
|
ammonia
|
10-100-05
|
1 to 30 ppmv
|
0.5 to 60 ppmv
|
10-100-10
|
5 to 100 ppmv
|
2.5 to 200 ppmv
|
|
10-100-12
|
10 to 260 ppmv
|
5 to 520 ppmv
|
|
10-100-15
|
25 to 500 ppmv
|
12 to 1000 ppmv
|
|
10-100-40
|
1 to 15%
|
0.5 to 30%
|
|
Benzene
|
10-101-01*
|
0.5 to 10 ppmv
selective
|
0.25 to 30 ppmv
|
10-101-10*
|
5 to 40 ppmv
selective
|
25 to 200 ppmv
|
|
10-101-20
|
5 to 100 ppmv
|
2.5 to 200 ppmv
|
|
Butadiene
|
10-135-04
|
0.5 to 5 ppmv
|
0.25 to 10 ppmv
|
n-Butane
|
10-137-30
|
25 to 1400 ppmv
|
12.5 to 2800 ppmv
|
Carbon Dioxide
|
10-104-30
|
300 to 5000 ppmv
|
150 to 10,000 ppmv
|
10-104-40
|
0.05 to 1%
|
0.025 to 2%
|
|
10-104-45
|
0.25 to 3%
|
0.125 to 6%
|
|
10-104-50
|
1 to 20%
|
0.5 to 10%
|
|
10-104-60
|
5 to 40%
|
1.25 to 20%
|
|
Carbon Monoxide
|
10-102-18
|
5 to 100 ppmv
selective
|
2.5 to 300 ppmv
|
10-102-20
|
5 to 100 ppmv
|
2.5 to 200 ppmv
|
|
10-102-30
|
20 to 500 ppmv
|
10 to 1000 ppmv
|
|
10-102-45
|
0.2 to 4%
|
0.4 to 8%
|
|
Chlorine
|
10-106-10
|
0.5 to 8 ppmv
|
0.25 to 16 ppmv
|
10-106-20
|
5 to 100 ppmv
|
2.5 to 200 ppmv
|
|
Chlorine Dioxide
|
10-130-10
|
0.25 to 15 ppmv
|
0.05 to 30 ppmv
|
Diesel & Jet Fuel
|
10-143-10
|
0.5 to 25 ppmv
|
N/A
|
Ethanol
|
10-141-30
|
100 to 2000 ppmv
|
50 to 2000 ppmv
|
Formaldehyde
|
10-121-05
|
0.1 to 5 ppmv
|
0.1 to 40 ppmv
|
Gasoline
|
10-138-30
|
30 to 1000 ppmv
|
15 to 2000 ppmv
|
Hydrocarbons
|
10-110-30
|
50 to 1000 ppmv
|
25 to 2000 ppmv
|
Hydrogen Chloride
|
10-108-09
|
1 to 20 ppmv
|
0.5 to 40 ppmv
|
10-108-10*
|
1 to 20 ppmv
w/ desiccant
|
0.5 to 40 ppmv
|
|
10-108-22
|
20 to 500 ppmv
|
10 to 1000 ppmv
|
|
Hydrogen Cyanide
|
10-126-10
|
2.5 to 60 ppmv
|
1.25 to 120 ppmv
|
Hydrogen Fluoride
|
10-105-10
|
0.5 to 20 ppmv
|
0.25 to 40 ppmv
|
type
|
Part Number
|
standard range
|
Extended range
|
Hydrogen sulfide
|
10-103-04
|
0.2 to 3 ppmv
|
0.1 to 6 ppmv
|
10-103-05*
|
0.2 to 3 ppmv
w/ desiccant
|
0.1 to 6 ppmv
|
|
10-103-06
|
1 to 7 ppmv
|
0.25 to 7 ppmv
|
|
10-103-10
|
2.5 to 60 ppmv
|
1.25 to 120 ppmv
|
|
10-103-12
|
10 to 120ppmv
|
5 to 240ppmv
|
|
10-103-15
|
10 to 120 ppmv
|
5 to 240 ppmv
|
|
10-103-18
|
25 to 250 ppmv
|
12.5 to 500 ppmv
|
|
10-103-20
|
50 to 800 ppmv
|
25 to 1600 ppmv
|
|
10-103-30
|
100 to 2000 ppmv
|
50 to 4000 ppmv
|
|
10-103-40
|
0.1 to 2%
|
0.05 to 4%
|
|
10-103-50
|
2 to 40%
|
0.5 to 20%
|
|
MEK
|
10-113-20
|
0.02 to 0.6 %
|
0.01 to 1.8 %
|
Mercaptans
|
10-129-20
|
5 to 120 ppmv
|
2.5 to 240 ppmv
|
Methyl Bromide
|
10-131-10
|
1 to 18 ppmv
|
0.5 to 36 ppmv
|
10-131-30
|
20 to 300 ppmv
|
40 to 600 ppmv
|
|
Nitric acid
|
10-146-20
|
1 to 20 ppm
|
0.5 to 40 ppm
|
Nitrogen Dioxide
|
10-117-10
|
0.5 to 30 ppmv
|
N/A
|
Nitrogen oxides
|
10-109-20*
|
1 to 50 ppmv
|
0.5 to 100 ppmv
|
ozone
|
10-133-03
|
0.05 to 0.6 ppmv
|
0.15 to 1.8 ppmv
|
Phenol
|
10-139-05
|
1 to 25 ppmv
|
0.5 to 180 ppmv
|
Phosphine
|
10-116-10
|
5 to 50 ppmv
|
2.5 to 100 ppmv
|
10-116-20
|
25 to 500 ppmv
|
12.5 to 1000 ppmv
|
|
10-116-25
|
50 to 1000 ppmv
|
25 to 2000 ppmv
|
|
sulfur Dioxide
|
10-107-15
|
2 to 30 ppmv
|
1 to 60 ppmv
|
10-107-20
|
5 to 100 ppmv
|
2.5 to 200 ppmv
|
|
10-107-25
|
100 to 1800 ppmv
|
50 to 3600 ppmv
|
|
10-107-30
|
200 to 4000 ppmv
|
50 to 4000 ppmv
|
|
10-107-40
|
0.2 to 5 %
|
0.1 to 10 %
|
|
toluene
|
10-114-20
|
10 to 300 ppmv
|
5 to 600 ppmv
|
trichloroethylene
|
10-119-20*
|
5 to 100 ppmv
|
2.5 to 230 ppmv
|
Vinyl Chloride
|
10-128-10*
|
1 to 20 ppmv
|
0.5 to 40 ppmv
|
Water Vapor
|
10-120-10
|
2 to 10 lbs/MMCF (0.03 to 0.16 mg/L)
|
1 to 20 lbs/MMCF
|
10-120-20
|
6 to 40 lbs/MMCF (0.1 to 0.64 mg/L)
|
3 to 80 lbs/MMCF
|
|
10-120-30
|
0.05 to 1 mg/L
|
0.025 to 2 mg/L
|
|
10-120-40
|
1 to 18 mg/L
|
0.5 to 32 mg/L
|
|
Xylene
|
10-112-20
|
10 to 200 ppmv
|
5 to 400 ppmv
|
RAE Systems colorimetric gas detection tubes en on-the-spot measurement of a wide range of toxic a
gases and vapors. RAE Systems tubes are easy to
provide a sharp, clear color change directly corresponding to
the concentration of gas present. RAE Systems tubes are compatible with the RAE Systems piston hand pump, a reliable way to draw samples of an exact volume required for the most
accurate measurements.
• No calibration needed
KEy FEaturEs
Colorimetric tubes
(See Colorimetric Tubes Part Numbers on back page)
• Wide assortment of tubes available to detect
over 300 gases and vapors
• Easy to use, even in multiple layers of gloves
• Easy-to-read with sharp, clear color change
• No calibration or other maintenance required
Hand Pump (LP-1200)
(Piston Hand Pump Kit Part Number: 010-0001-000)
• Ergonomic, durable hand pump
• Solid metal construction with lifetime warranty
• Springless piston design accurately draws
50 and 100 cc volumes
aPPLiCatioNs
• Oil and gas
• Chemicals and petrochemicals
• Agriculture and pest control
• Food and beverage production
• Environmental protection
• Fire service
• HazMat response
• National security
RAE Systems colorimetric gas detection tubes en on-the-spot measurement of a wide range of toxic a
gases and vapors. RAE Systems tubes are easy to
provide a sharp, clear color change directly corresponding to
the concentration of gas present. RAE Systems tubes are compatible with the RAE Systems piston hand pump, a reliable way to draw samples of an exact volume required for the most
accurate measurements.
• No calibration needed
KEy FEaturEs
Colorimetric tubes
(See Colorimetric Tubes Part Numbers on back page)
• Wide assortment of tubes available to detect
over 300 gases and vapors
• Easy to use, even in multiple layers of gloves
• Easy-to-read with sharp, clear color change
• No calibration or other maintenance required
Hand Pump (LP-1200)
(Piston Hand Pump Kit Part Number: 010-0001-000)
• Ergonomic, durable hand pump
• Solid metal construction with lifetime warranty
• Springless piston design accurately draws
50 and 100 cc volumes
aPPLiCatioNs
• Oil and gas
• Chemicals and petrochemicals
• Agriculture and pest control
• Food and beverage production
• Environmental protection
• Fire service
• HazMat response
• National security
