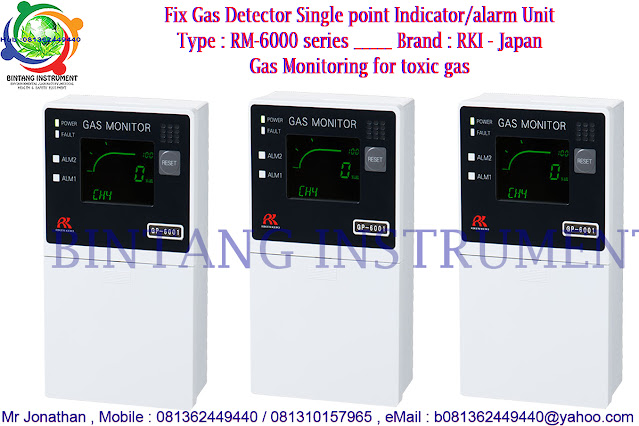

Fix Gas Monitor
Brand : Riken Keiki ( RKI )'
Origin : Japan
Gas Monitoring Detected : Toxic
Type : EC-6002
Fix Gas Monitoring
- Indication :3-color LCD bar meter (52 dots)
- Type of acceptable detector head : Electrochemical cell
- Acceptable input signal : 4-20mA output
- Applicable cable : CVVS-2C
- Max distance : 2 km
- Output signal : Output of electric power transmission (non-isolated)
20mADC, max loop load 300 ohm
- Alarm indication : Flashing or lighting lamp: Red(AL1), Red (AL2),
Latching or non-latching, Locking mode
- Trouble alarm : Orange lamp flashing (FAULT), Non-latching
- Alarm relays : Normally energized or de-energized, Normally-open or
closed contact Rated 1A at 125VAC, 1A at 30VDC (resistive)
- Operation condition : -10 -50°C, below 95%RH (non-condensing)
- Power requirement : Ac type: 100 -240 VAC +/-10%
DC type: 24VDC +/-10%
- Power consumption: MAX 6.5VA
MAX 3W
- Dimensions & weight : Approx. 110 (W) x 190 (H) x 54 (D) mm,
all mounting type: 580g / Panel mounting type: 650g
- Mounting
Note :
BINTANG INSTRUMENT Brochure RM6000 Series
=========================================================
Jual Gas Monitoring Fix Gas Detector :
GP-6001 Combustible Gases
SP-6001 Combustible Gases / Toxic Gases
GH-6001 Combustible Gases / Toxic Gases
EC-6002 – Toxic Gases
OX-6001 Oxygen
OX-6002 Oxygen
RM-6002 Combustible Gases Toxic Gases , Oxygen ( 4-20 mA )
RM-6003 Combustible Gases Toxic Gases , Oxygen ( 4-20 mA )
.
.
.
